Standard Grating

 Advantages of types and specifications

×

 Flat Grating

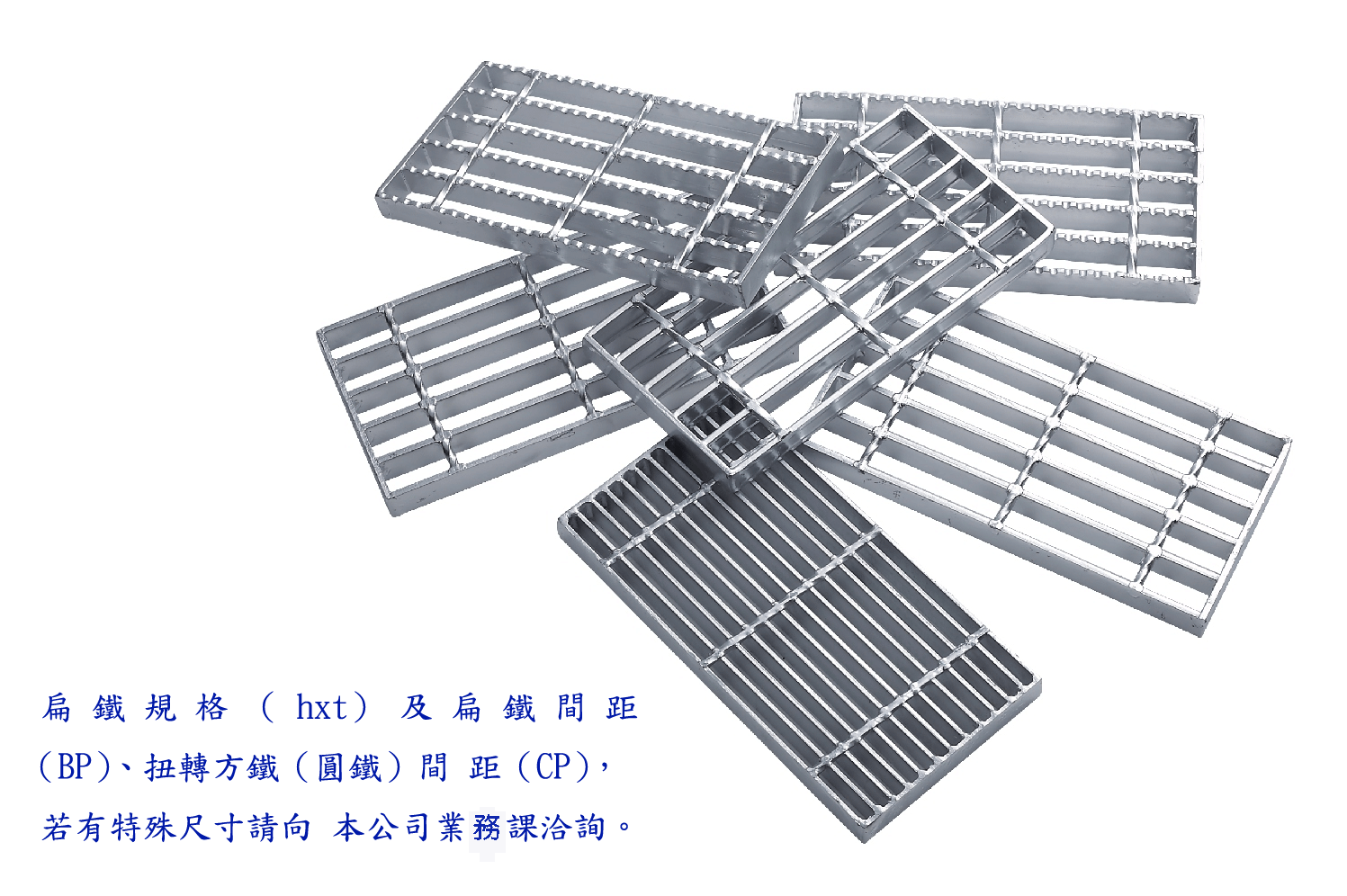

[Please compare the product photo above]

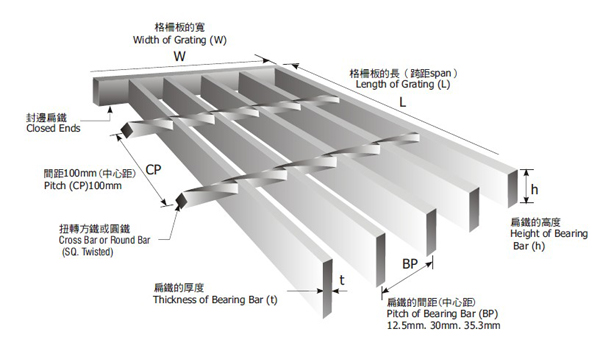

NO. Flat Iron (h x t) Pitch of Bearing Bar (BP) Cross Bar Pitch(CP)
CF193 19*3 30 6 100
CF1945 19*4.5 30 6 100
CF253 25*3 30 6 100
CF2545 25*4.5 30 6 100
CF256 25*6 30 6 100
CF323 32*3 30 6 100
CF3245 32*4.5 30 6 100
CF326 32*6 30 6 100
CF383 38*3 30 6 100
CF3845 38*4.5 30 6 100
CF386 38*6 30 6 100
CF4445 44*4.5 30 6 100
CF446 44*6 30 6 100
CF5045 50*4.5 30 6 100
CF506 50*6 30 6 100
CF509 50*9 35.3 8 100
CF656 65*6 30 8 100
CF659 65*9 35.3 8 100
CF756 75*6 30 8 100
CF759 75*9 35.3 8 100
CF906 90*6 30 8 100
CF909 90*9 35.3 8 100
CF1006 100*6 30 8 100
CF1006 100*6 30 8 100
CF1009 100*9 35.3 8 100

 Serrated Grating

NO. Flat Iron (h x t) Pitch of Bearing Bar (BP) Cross Bar Pitch(CP)
CS2545 25*4.5 30 6 100
CS3245 32*4.5 30 6 100
CS3845 38*4.5 30 6 100
CF2545 25*4.5 30 6 100
CS5045 50*4.5 30 6 100

 Fine Mesh Grating

NO. Flat Iron (h x t) Pitch of Bearing Bar (BP) Cross Bar Pitch(CP)
CM193 19*3 12.5 Ø5 or 5 100
CM253 25*3 12.5 Ø5 or 5 100
CM323 32*3 12.5 Ø5 or 5 100
CM383 38*3 12.5 Ø5 or 5 100
CM443 44*3 12.5 Ø5 or 5 100
CM503 50*3 12.5 Ø5 or 5 100

  I-Shape Flat Iron Grating

NO. Flat Iron (h x t) Pitch of Bearing Bar (BP) Cross Bar Pitch(CP)
CI2553 I25*5*3 30 6 100
CI3253 I32*5*3 30 6 100
CI3853 I38*5*3 30 6 100
CI4453 I44*5*3 30 6 100
CI5074 I50*7*4 35.3 8 100
CI5574 I55*7*4 35.3 8 100
CI6074 I60*7*4 35.3 8 100
CI6574 I65*7*4 35.3 8 100
CI7574 I75*7*4 35.3 8 100
