Load Table

This table shows the weight of Grating after hot dip galvanizing for edge sealing.

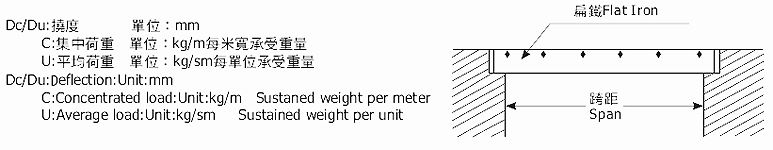

Flat iron specifications weight spacing Deflection of load Span
Flat iron specification hxt Weight kg/m2 Pitch (BP) load deflection 200 300 500 750 1000 1250 1500 1750 2000 2250 2500 2750 3000
19x4.5 28 30 C 2538 1692 1016 677 508 406 339
Dc 0.24 0.54 1.51 3.40 6.05 9.44 13.61
U 25382 11281 4062 1805 1016 650 452
Du 0.3 0.68 1.89 4.25 7.56 11.81 17.03
25x3 25.6 30 C 2930 1953 1172 781 586 469 391 334 293
Dc 0.18 0.41 1.15 2.59 4.60 7.19 10.34 14.06 18.37
U 29296 13021 4688 2083 1172 749 521 382 293
Du 0.23 0.52 1.44 3.23 5.75 8.97 12.93 17.59 22.96
25x4.5 36 30 C 4394 2930 1758 1172 879 704 586 503
Dc 0.18 0.41 1.15 2.59 4.60 7.19 10.35 14.09
U 43944 19531 7031 3124 1758 1125 781 574
Du 0.23 0.52 1.44 3.23 5.75 8.98 12.93 17.6
32x3 31.5 30 C 4800 3200 1920 1280 960 768 640 549 480
Dc 0.14 0.32 0.90 2.59 2.02 3.59 5.61 8.09 11.00 14.37
U 47999 21332 7679 3413 1920 1229 854 627 480
Du 0.18 0.4 1.12 2.52 4.49 7.01 10.1 13.75 17.97
32x4.5 45 30 C 7199 4800 2880 1920 1440 1152 960 823 720
Dc 0.14 0.32 0.90 2.02 3.59 5.61 8.08 11.00 14.36
U 71997 31999 11520 5120 2880 1843 1280 940 720
Du 0.18 0.4 1.12 2.53 4.49 7.01 10.1 13.74 17.95
38x3 37 30 C 6769 2707 1805 1354 1083 902 774 677 602 541 493
Dc 0.12 0.27 0.76 1.70 3.03 4.73 6.80 9.27 12.10 15.31 18.90 22.88
U 67686 30083 10829 4813 2707 1732 1203 884 677 534 433 358
Du 0.15 0.34 0.95 2.13 3.78 5.91 8.51 11.58 15.13 19.12 23.64 28.58
38x4.5 53 30 C 10152 6769 4062 2707 2030 1624 1354 1160 1016 902 813 738
Dc 0.12 0.27 0.76 1.70 3.02 4.73 6.81 9.26 12.10 15.31 18.91 22.87
U 101527 45123 16244 7220 4062 2599 1805 1326 1016 803 650 537
Du 0.15 0.34 0.95 2.13 3.78 5.91 8.51 11.57 15.13 19.14 23.62 28.61
44x4.5 60.5 30 C 13612 9074 5444 3630 2723 2178 1815 1556 1361 1210 1089 990
Dc 0.10 0.24 0.65 1.47 2.61 4.08 5.88 8.00 10.45 13.23 16.32 19.76
U 136119 60498 21779 9679 5444 3484 2420 1778 1361 1076 871 720
Du 0.13 0.29 0.82 1.84 3.26 5.1 7.35 10 13.06 16.53 20.4 24.69
50x4.5 68.3 30 C 17578 11719 7031 4688 3516 2812 2343 2009 1758 1562 1406 1279
Dc 0.09 0.21 0.57 1.29 2.59 5.17 7.04 9.19 11.63 14.36 17.39
U 175774 78121 28124 12500 7031 4500 3124 2295 1758 1389 1125 930
Du 0.11 0.26 0.72 1.62 2.87 4.49 6.46 8.8 11.49 14.54 17.95 21.73
65x6 117.2 30 C 39608 26405 15843 10562 7921 6338 5281 4527 3961 3521 3168 2881 2640
Dc 0.07 0.16 0.44 1.99 1.77 2.76 3.98 5.41 7.07 8.95 11.05 13.37 15.91
U 396075 176034 63372 28166 15843 10139 7041 5173 3961 3130 2535 2094 1760
Dc 0.09 0.21 0.57 1.29 2.30 3.59 5.17 7.04 9.19 11.64 14.37 17.39 20.68
65x6 117.2 30 C 52733 35155 21093 14062 10547 8437 7031 6027 5273 4688 4219 3835 3516
Dc 0.06 0.14 0.38 0.86 1.53 2.39 3.45 4.69 6.13 7.76 9.58 11.59 13.79
U 527321 234364 84371 37498 21093 13499 9374 6887 5273 4167 3375 2789 2343
Dc 0.08 0.17 0.48 1.08 1.92 2.99 4.31 5.87 7.66 9.7 11.97 14.48 17.24
90x6 160.2 30 C 75934 50623 30373 20250 15187 12150 10125 8678 7594 6750 6074 5523 5062
Dc 0.05 0.11 0.32 0.72 1.28 2.00 2.87 3.91 5.11 6.46 7.98 9.66 11.49
U 759342 337485 121495 53998 30373 19439 13499 9918 7594 6000 4860 4017 3375
Dc 0.06 0.14 0.4 0.9 1.6 2.49 3.59 4.89 6.38 8.08 9.98 12.07 14.37

 Serrated Grating
